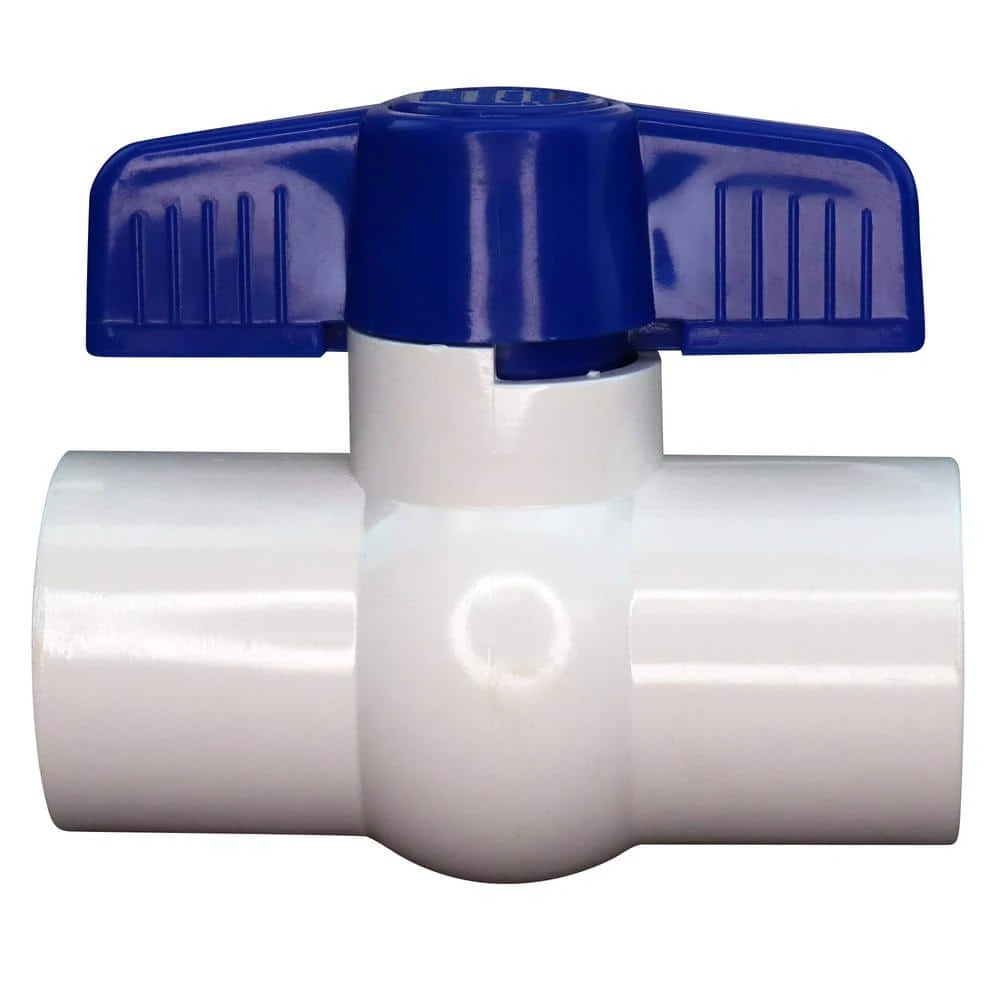

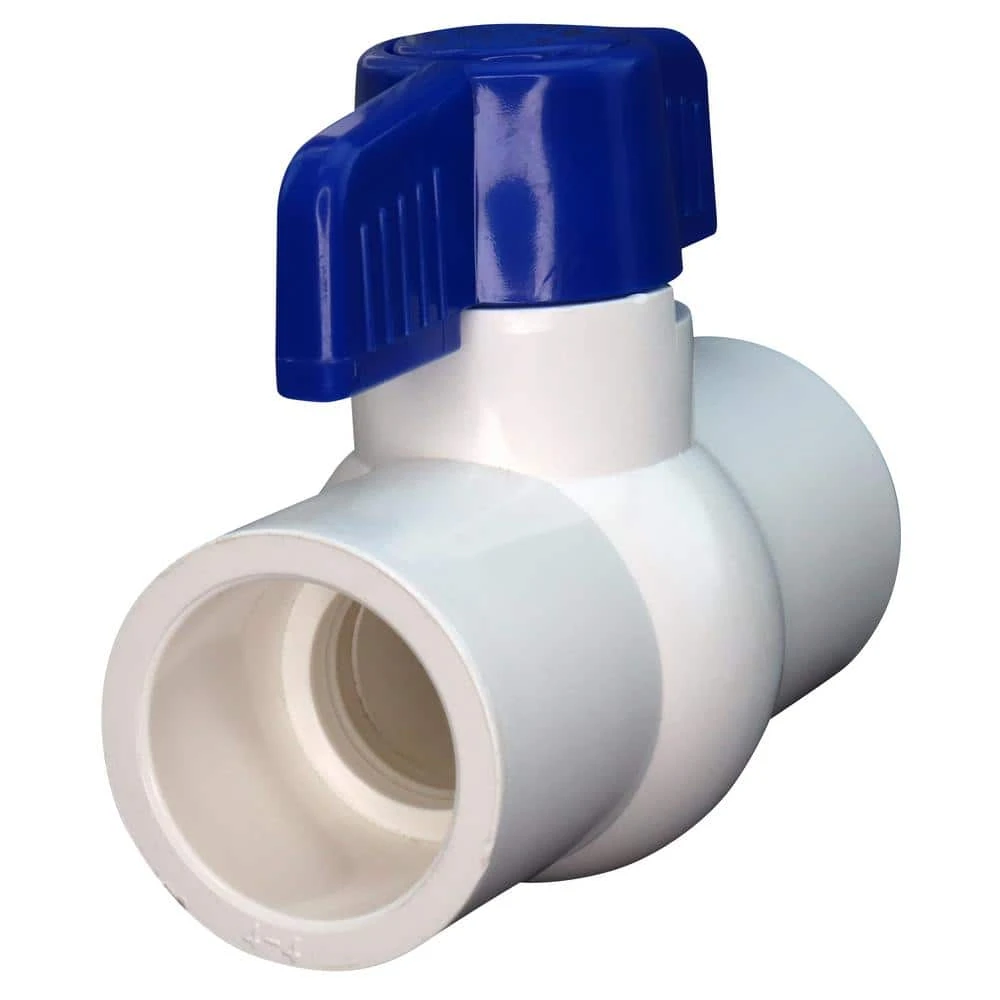

Everbilt 3/4 in. PVC Sch. 40 Slip x Slip Ball Valve
Original price was: $4.16.$2.62Current price is: $2.62.
Compatible with PVC piping (not included)
Ideal for irrigation, pools and spas
Solvent weld connection
- Multiple payment options for secure shopping with SSL
- 100% environmentally friendly material
- Uncompromising quality, every time.
- Your Security is Our Promise
Everbilt PVC Sch. 40 Ball Valves are compact and lightweight. This Slip x Slip valve is designed for a variety of applications including pressure distribution of cold water in irrigation, pool, spa, agricultural, commercial and light industrial applications. Everbilt PVC Sch. 40 ball valves are NSF approved and have EPDM seats and O-rings integrated into the durable PVC body. The full port valve design allows for maximum flow rates with minimal turbulence or pressure reduction.
- Single-union design allows for a separation point from the piping system
- Full port design allows for maximum efficiency and minimal turbulence
- Quarter-turn flow control for easy on/off
- Working temperature range: 41°F to 122°F (5°C to 55°C)
- Maximum pressure rating 150 psi at 73°F (22°C)
- Requires solvent cement for installation
- Requires solvent cement for installation (not included)
- Designed for use with SCH40 and SCH80 pipe (not included)
- Please note – as temperature increases, working pressure decreases, the optimal working pressure for PVC valves is 150 psi at 73°F (22°C) if the temperature increases above 73°F (22°C), use the PVC correction factor to determine working pressure, multiply the maximum working pressure by the correction factor, please see correction factor grid on the attached specification sheet
| Application | Water Supply |
|---|---|
| Valve Type | Ball |
| Valve Inlet Diameter (in.) | 3/4 |
| Product Width (in.) | 3.84 in |
| Product Length (in.) | 2.14 in |
| Product Height (in.) | 3.34 in |
| Product Depth (in.) | 2.14 in |
| Outlet Diameter (In.) | 3/4 |
| Inlet Diameter (In.) | 3/4 |
| Manufacturer Warranty | 1 Year |
| Valve Use | Water |
| Returnable | 90-Day |
| Compatible Pipe Material | PVC |
| Product Weight (lb.) | 0.425 lb |
| Pack Size | 1 |
| Maximum Working Temperature (F) | 122 |
| Maximum Pressure (psi) | 150 |
| Material | PVC |
| Indoor/Outdoor | Indoor,Outdoor |
| Handle Style | T-Handle |
| Features | Corrosion Resistant,Lead Free |
| Connection | Slip-Joint |
| Valve Outlet Diameter (in.) | .75 |
